polkit

polkit — Authorization Framework

OVERVIEW

PolicyKit provides an authorization API intended to be used by privileged programs (MECHANISMS) offering service to unprivileged programs (CLIENTS) through some form of IPC mechanism such as D-Bus or Unix pipes. In this scenario, the mechanism typically treats the client as untrusted. For every request from a client, the mechanism needs to determine if the request is authorized or if it should refuse to service the client. Using the PolicyKit API, a mechanism can offload this decision to a trusted party: The PolicyKit Authority.

In addition to acting as an authority, PolicyKit allows users to obtain temporary authorization through authenticating either an administrative user or the owner of the session the client belongs to. This is useful for scenarios where a mechanism needs to verify that the operator of the system really is the user or really is an administrative user.

SYSTEM ARCHITECTURE

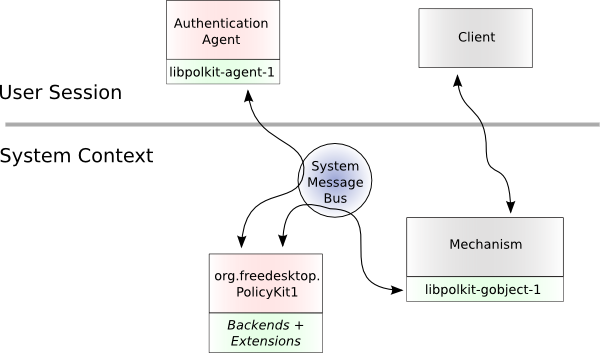

The system architecture of PolicyKit is comprised of the Authority (implemented as a service on the system message bus) and a Authentication Agent per user session (provided and started by the user session e.g. GNOME or KDE). Additionally, PolicyKit supports a number of extension points – specifically, vendors and/or sites can write extensions to completely control authorization policy. In a block diagram, the architecture looks like this:

For convenience, the libpolkit-gobject-1 library wraps the PolicyKit D-Bus API using GObject. However, a mechanism can also use the D-Bus API or the pkcheck(1) command to check authorizations.

The libpolkit-agent-1 library provides an abstraction of the native authentication system, e.g. pam(8) and also facilities registration and communication with the PolicyKit D-Bus service.

PolicyKit extensions and authority backends are implemented using the libpolkit-backend-1 library.

See the developer documentation for more information about using and extending PolicyKit.

See pklocalauthority(8) for information about the Local Authority - the default authority implementation shipped with PolicyKit.

AUTHENTICATION AGENTS

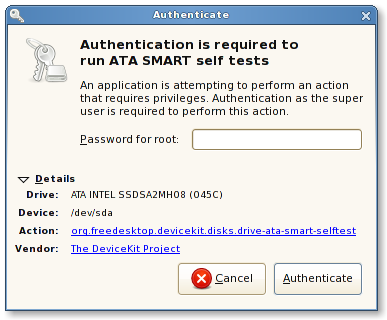

An authentication agent is used to make the user of a session prove that the user of the session really is the user (by authenticating as the user) or an administrative user (by authenticating as a administrator). In order to integrate well with the rest of the user session (e.g. match the look and feel), authentication agents are meant to be provided by the user session that the user uses. For example, an authentication agent may look like this:

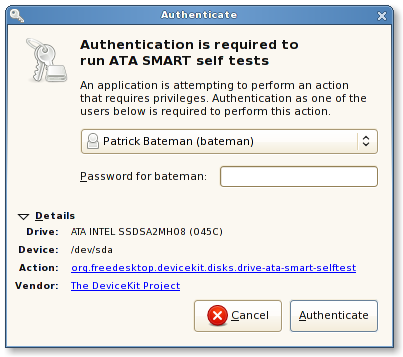

If the system is configured without a root account it may allow you to select the administrative user who is authenticating:

See pklocalauthority(8) on how to set up the local authority implemention for systems without a root account.

DECLARING ACTIONS

A mechanism need to declare a set of ACTIONS in order to use PolicyKit. Actions correspond to operations that clients can request the mechanism to carry out and are defined in XML files that the mechanism installs into the /usr/share/polkit-1/actions directory.

PolicyKit actions are namespaced and can only contain the characters [a-z][0-9].- e.g. lower-case ASCII, digits, period and hyphen. Each XML file can contain more than one action but all actions need to be in the same namespace and the file needs to be named after the namespace and have the extension .policy.

The XML file must have the following doctype declaration

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE policyconfig PUBLIC "-//freedesktop//DTD PolicyKit Policy Configuration 1.0//EN"
"http://www.freedesktop.org/standards/PolicyKit/1.0/policyconfig.dtd">

The policyconfig element must be present exactly once. Elements that can be used inside policyconfig includes:

vendor

The name of the project or vendor that is supplying the actions in the XML document. Optional.

vendor_url

A URL to the project or vendor that is supplying the actions in the XML document. Optional.

icon_name

An icon representing the project or vendor that is supplying the actions in the XML document. The icon name must adhere to the Freedesktop.org Icon Naming Specification. Optional.

action

Declares an action. The action name is specified using the id attribute and can only contain the characters [a-z][0-9].- e.g. lower-case ASCII, digits, period and hyphen.

Elements that can be used inside action includes:

description

A human readable description of the action, e.g. Install unsigned software.

message

A human readable message displayed to the user when asking for credentials when authentication is needed, e.g. Installing unsigned software requires authentication.

defaults

This element is used to specify implicit authorizations for clients.

Elements that can be used inside defaults includes:

allow_any

Implicit authorizations that apply to any client. Optional.

allow_inactive

Implicit authorizations that apply to clients in inactive sessions on local consoles. Optional.

allow_active

Implicit authorizations that apply to clients in active sessions on local consoles. Optional.

Each of the allow_any, allow_inactive and allow_active elements can contain the following values:

no

Not authorized.

yes

Authorized.

auth_self

Authentication by the owner of the session that the client originates from is required.

auth_admin

Authentication by an administrative user is required.

auth_self_keep

Like auth_self but the authorization is kept for a brief period.

auth_admin_keep

Like auth_admin but the authorization is kept for a brief period.

annotate

Used for annotating an action with a key/value pair. The key is specified using the the key attribute and the value is specified using the value attribute. This element may appear zero or more times. See pkexec(1) for an example of how this can be used.

vendor

Used for overriding the vendor on a per-action basis. Optional.

vendor_url

Used for overriding the vendor URL on a per-action basis. Optional.

icon_name

Used for overriding the icon name on a per-action basis. Optional.

For localization, description and message elements may occur multiple times with different xml:lang attributes.

To list installed PolicyKit actions, use the pkaction(1) command.

AUTHOR

Written by David Zeuthen with a lot of help from many others.

BUGS

Please send bug reports to either the distribution or the polkit-devel mailing list, see the link http://lists.freedesktop.org/mailman/listinfo/polkit-devel on how to subscribe.

SEE ALSO

pklocalauthority(8) polkitd(8) pkaction(1), pkcheck(1), pkexec(1),
