GtkTreeView as GtkBuildable

The GtkTreeView implementation of the GtkBuildable interface accepts GtkTreeViewColumn objects as <child> elements and exposes the internal GtkTreeSelection in UI definitions.

An example of a UI definition fragment with GtkTreeView:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

<object class="GtkTreeView" id="treeview">
  <property name="model">liststore1</property>
  <child>
    <object class="GtkTreeViewColumn" id="test-column">
      <property name="title">Test</property>
      <child>
        <object class="GtkCellRendererText" id="test-renderer"/>
        <attributes>
          <attribute name="text">1</attribute>
        </attributes>
      </child>
    </object>
  </child>
  <child internal-child="selection">
    <object class="GtkTreeSelection" id="selection">
      <signal name="changed" handler="on_treeview_selection_changed"/>
    </object>
  </child>
</object>

GtkTreeViewColumnDropFunc ()

gboolean
(*GtkTreeViewColumnDropFunc) (GtkTreeView *tree_view,
                              GtkTreeViewColumn *column,
                              GtkTreeViewColumn *prev_column,
                              GtkTreeViewColumn *next_column,
                              gpointer data);

Function type for determining whether column can be dropped in a particular spot (as determined by prev_column and next_column ). In left to right locales, prev_column is on the left of the potential drop spot, and next_column is on the right. In right to left mode, this is reversed. This function should return TRUE if the spot is a valid drop spot. Please note that returning TRUE does not actually indicate that the column drop was made, but is meant only to indicate a possible drop spot to the user.

GtkTreeViewMappingFunc ()

void
(*GtkTreeViewMappingFunc) (GtkTreeView *tree_view,
                           GtkTreePath *path,
                           gpointer user_data);

Function used for gtk_tree_view_map_expanded_rows().

GtkTreeViewSearchEqualFunc ()

gboolean
(*GtkTreeViewSearchEqualFunc) (GtkTreeModel *model,
                               gint column,
                               const gchar *key,
                               GtkTreeIter *iter,
                               gpointer search_data);

A function used for checking whether a row in model matches a search key string entered by the user. Note the return value is reversed from what you would normally expect, though it has some similarity to strcmp() returning 0 for equal strings.

gtk_tree_view_new ()

GtkWidget *
gtk_tree_view_new (void);

Creates a new GtkTreeView widget.

gtk_tree_view_get_level_indentation ()

gint
gtk_tree_view_get_level_indentation (GtkTreeView *tree_view);

Returns the amount, in pixels, of extra indentation for child levels in tree_view .

Since 2.12

gtk_tree_view_get_show_expanders ()

gboolean
gtk_tree_view_get_show_expanders (GtkTreeView *tree_view);

Returns whether or not expanders are drawn in tree_view .

Since 2.12

gtk_tree_view_set_level_indentation ()

void
gtk_tree_view_set_level_indentation (GtkTreeView *tree_view,
                                     gint indentation);

Sets the amount of extra indentation for child levels to use in tree_view in addition to the default indentation. The value should be specified in pixels, a value of 0 disables this feature and in this case only the default indentation will be used. This does not have any visible effects for lists.

Since 2.12

gtk_tree_view_set_show_expanders ()

void
gtk_tree_view_set_show_expanders (GtkTreeView *tree_view,
                                  gboolean enabled);

Sets whether to draw and enable expanders and indent child rows in tree_view . When disabled there will be no expanders visible in trees and there will be no way to expand and collapse rows by default. Also note that hiding the expanders will disable the default indentation. You can set a custom indentation in this case using gtk_tree_view_set_level_indentation(). This does not have any visible effects for lists.

Since 2.12

gtk_tree_view_new_with_model ()

GtkWidget *
gtk_tree_view_new_with_model (GtkTreeModel *model);

Creates a new GtkTreeView widget with the model initialized to model .

gtk_tree_view_get_model ()

GtkTreeModel *
gtk_tree_view_get_model (GtkTreeView *tree_view);

Returns the model the GtkTreeView is based on. Returns NULL if the model is unset.

gtk_tree_view_set_model ()

void
gtk_tree_view_set_model (GtkTreeView *tree_view,
                         GtkTreeModel *model);

Sets the model for a GtkTreeView. If the tree_view already has a model set, it will remove it before setting the new model. If model is NULL, then it will unset the old model.

gtk_tree_view_get_selection ()

GtkTreeSelection *
gtk_tree_view_get_selection (GtkTreeView *tree_view);

Gets the GtkTreeSelection associated with tree_view .

gtk_tree_view_get_hadjustment ()

GtkAdjustment *
gtk_tree_view_get_hadjustment (GtkTreeView *tree_view);

Gets the GtkAdjustment currently being used for the horizontal aspect.

gtk_tree_view_set_hadjustment ()

void
gtk_tree_view_set_hadjustment (GtkTreeView *tree_view,
                               GtkAdjustment *adjustment);

Sets the GtkAdjustment for the current horizontal aspect.

gtk_tree_view_get_vadjustment ()

GtkAdjustment *
gtk_tree_view_get_vadjustment (GtkTreeView *tree_view);

Gets the GtkAdjustment currently being used for the vertical aspect.

gtk_tree_view_set_vadjustment ()

void
gtk_tree_view_set_vadjustment (GtkTreeView *tree_view,
                               GtkAdjustment *adjustment);

Sets the GtkAdjustment for the current vertical aspect.

gtk_tree_view_get_headers_visible ()

gboolean
gtk_tree_view_get_headers_visible (GtkTreeView *tree_view);

Returns TRUE if the headers on the tree_view are visible.

gtk_tree_view_set_headers_visible ()

void
gtk_tree_view_set_headers_visible (GtkTreeView *tree_view,
                                   gboolean headers_visible);

Sets the visibility state of the headers.

gtk_tree_view_columns_autosize ()

void
gtk_tree_view_columns_autosize (GtkTreeView *tree_view);

Resizes all columns to their optimal width. Only works after the treeview has been realized.

gtk_tree_view_get_headers_clickable ()

gboolean
gtk_tree_view_get_headers_clickable (GtkTreeView *tree_view);

Returns whether all header columns are clickable.

Since 2.10

gtk_tree_view_set_headers_clickable ()

void
gtk_tree_view_set_headers_clickable (GtkTreeView *tree_view,
                                     gboolean setting);

Allow the column title buttons to be clicked.

gtk_tree_view_set_rules_hint ()

void
gtk_tree_view_set_rules_hint (GtkTreeView *tree_view,
                              gboolean setting);

This function tells GTK+ that the user interface for your application requires users to read across tree rows and associate cells with one another. By default, GTK+ will then render the tree with alternating row colors. Do not use it just because you prefer the appearance of the ruled tree; that’s a question for the theme. Some themes will draw tree rows in alternating colors even when rules are turned off, and users who prefer that appearance all the time can choose those themes. You should call this function only as a semantic hint to the theme engine that your tree makes alternating colors useful from a functional standpoint (since it has lots of columns, generally).

gtk_tree_view_get_rules_hint ()

gboolean
gtk_tree_view_get_rules_hint (GtkTreeView *tree_view);

Gets the setting set by gtk_tree_view_set_rules_hint().

gtk_tree_view_set_activate_on_single_click ()

void
gtk_tree_view_set_activate_on_single_click
                               (GtkTreeView *tree_view,
                                gboolean single);

Cause the “row-activated” signal to be emitted on a single click instead of a double click.

Since 3.8

gtk_tree_view_get_activate_on_single_click ()

gboolean
gtk_tree_view_get_activate_on_single_click
                               (GtkTreeView *tree_view);

Gets the setting set by gtk_tree_view_set_activate_on_single_click().

Since 3.8

gtk_tree_view_append_column ()

gint
gtk_tree_view_append_column (GtkTreeView *tree_view,
                             GtkTreeViewColumn *column);

Appends column to the list of columns. If tree_view has “fixed_height” mode enabled, then column must have its “sizing” property set to be GTK_TREE_VIEW_COLUMN_FIXED.

gtk_tree_view_remove_column ()

gint
gtk_tree_view_remove_column (GtkTreeView *tree_view,
                             GtkTreeViewColumn *column);

Removes column from tree_view .

gtk_tree_view_insert_column ()

gint
gtk_tree_view_insert_column (GtkTreeView *tree_view,
                             GtkTreeViewColumn *column,
                             gint position);

This inserts the column into the tree_view at position . If position is -1, then the column is inserted at the end. If tree_view has “fixed_height” mode enabled, then column must have its “sizing” property set to be GTK_TREE_VIEW_COLUMN_FIXED.

gtk_tree_view_insert_column_with_attributes ()

gint
gtk_tree_view_insert_column_with_attributes
                               (GtkTreeView *tree_view,
                                gint position,
                                const gchar *title,
                                GtkCellRenderer *cell,
                                ...);

Creates a new GtkTreeViewColumn and inserts it into the tree_view at position . If position is -1, then the newly created column is inserted at the end. The column is initialized with the attributes given. If tree_view has “fixed_height” mode enabled, then the new column will have its sizing property set to be GTK_TREE_VIEW_COLUMN_FIXED.

gtk_tree_view_insert_column_with_data_func ()

gint
gtk_tree_view_insert_column_with_data_func
                               (GtkTreeView *tree_view,
                                gint position,
                                const gchar *title,
                                GtkCellRenderer *cell,
                                GtkTreeCellDataFunc func,
                                gpointer data,
                                GDestroyNotify dnotify);

Convenience function that inserts a new column into the GtkTreeView with the given cell renderer and a GtkTreeCellDataFunc to set cell renderer attributes (normally using data from the model). See also gtk_tree_view_column_set_cell_data_func(), gtk_tree_view_column_pack_start(). If tree_view has “fixed_height” mode enabled, then the new column will have its “sizing” property set to be GTK_TREE_VIEW_COLUMN_FIXED.

gtk_tree_view_get_n_columns ()

guint
gtk_tree_view_get_n_columns (GtkTreeView *tree_view);

Queries the number of columns in the given tree_view .

Since 3.4

gtk_tree_view_get_column ()

GtkTreeViewColumn *
gtk_tree_view_get_column (GtkTreeView *tree_view,
                          gint n);

Gets the GtkTreeViewColumn at the given position in the tree_view.

gtk_tree_view_get_columns ()

GList *
gtk_tree_view_get_columns (GtkTreeView *tree_view);

Returns a GList of all the GtkTreeViewColumn s currently in tree_view . The returned list must be freed with g_list_free().

gtk_tree_view_move_column_after ()

void
gtk_tree_view_move_column_after (GtkTreeView *tree_view,
                                 GtkTreeViewColumn *column,
                                 GtkTreeViewColumn *base_column);

Moves column to be after to base_column . If base_column is NULL, then column is placed in the first position.

gtk_tree_view_set_expander_column ()

void
gtk_tree_view_set_expander_column (GtkTreeView *tree_view,
                                   GtkTreeViewColumn *column);

Sets the column to draw the expander arrow at. It must be in tree_view . If column is NULL, then the expander arrow is always at the first visible column.

If you do not want expander arrow to appear in your tree, set the expander column to a hidden column.

gtk_tree_view_get_expander_column ()

GtkTreeViewColumn *
gtk_tree_view_get_expander_column (GtkTreeView *tree_view);

Returns the column that is the current expander column. This column has the expander arrow drawn next to it.

gtk_tree_view_set_column_drag_function ()

void
gtk_tree_view_set_column_drag_function
                               (GtkTreeView *tree_view,
                                GtkTreeViewColumnDropFunc func,
                                gpointer user_data,
                                GDestroyNotify destroy);

Sets a user function for determining where a column may be dropped when dragged. This function is called on every column pair in turn at the beginning of a column drag to determine where a drop can take place. The arguments passed to func are: the tree_view , the GtkTreeViewColumn being dragged, the two GtkTreeViewColumn s determining the drop spot, and user_data . If either of the GtkTreeViewColumn arguments for the drop spot are NULL, then they indicate an edge. If func is set to be NULL, then tree_view reverts to the default behavior of allowing all columns to be dropped everywhere.

gtk_tree_view_scroll_to_point ()

void
gtk_tree_view_scroll_to_point (GtkTreeView *tree_view,
                               gint tree_x,
                               gint tree_y);

Scrolls the tree view such that the top-left corner of the visible area is tree_x , tree_y , where tree_x and tree_y are specified in tree coordinates. The tree_view must be realized before this function is called. If it isn't, you probably want to be using gtk_tree_view_scroll_to_cell().

If either tree_x or tree_y are -1, then that direction isn’t scrolled.

gtk_tree_view_scroll_to_cell ()

void
gtk_tree_view_scroll_to_cell (GtkTreeView *tree_view,
                              GtkTreePath *path,
                              GtkTreeViewColumn *column,
                              gboolean use_align,
                              gfloat row_align,
                              gfloat col_align);

Moves the alignments of tree_view to the position specified by column and path . If column is NULL, then no horizontal scrolling occurs. Likewise, if path is NULL no vertical scrolling occurs. At a minimum, one of column or path need to be non-NULL. row_align determines where the row is placed, and col_align determines where column is placed. Both are expected to be between 0.0 and 1.0. 0.0 means left/top alignment, 1.0 means right/bottom alignment, 0.5 means center.

If use_align is FALSE, then the alignment arguments are ignored, and the tree does the minimum amount of work to scroll the cell onto the screen. This means that the cell will be scrolled to the edge closest to its current position. If the cell is currently visible on the screen, nothing is done.

This function only works if the model is set, and path is a valid row on the model. If the model changes before the tree_view is realized, the centered path will be modified to reflect this change.

gtk_tree_view_set_cursor ()

void
gtk_tree_view_set_cursor (GtkTreeView *tree_view,
                          GtkTreePath *path,
                          GtkTreeViewColumn *focus_column,
                          gboolean start_editing);

Sets the current keyboard focus to be at path , and selects it. This is useful when you want to focus the user’s attention on a particular row. If focus_column is not NULL, then focus is given to the column specified by it. Additionally, if focus_column is specified, and start_editing is TRUE, then editing should be started in the specified cell. This function is often followed by gtk_widget_grab_focus (tree_view ) in order to give keyboard focus to the widget. Please note that editing can only happen when the widget is realized.

If path is invalid for model , the current cursor (if any) will be unset and the function will return without failing.

gtk_tree_view_set_cursor_on_cell ()

void
gtk_tree_view_set_cursor_on_cell (GtkTreeView *tree_view,
                                  GtkTreePath *path,
                                  GtkTreeViewColumn *focus_column,
                                  GtkCellRenderer *focus_cell,
                                  gboolean start_editing);

Sets the current keyboard focus to be at path , and selects it. This is useful when you want to focus the user’s attention on a particular row. If focus_column is not NULL, then focus is given to the column specified by it. If focus_column and focus_cell are not NULL, and focus_column contains 2 or more editable or activatable cells, then focus is given to the cell specified by focus_cell . Additionally, if focus_column is specified, and start_editing is TRUE, then editing should be started in the specified cell. This function is often followed by gtk_widget_grab_focus (tree_view ) in order to give keyboard focus to the widget. Please note that editing can only happen when the widget is realized.

If path is invalid for model , the current cursor (if any) will be unset and the function will return without failing.

Since 2.2

gtk_tree_view_get_cursor ()

void
gtk_tree_view_get_cursor (GtkTreeView *tree_view,
                          GtkTreePath **path,
                          GtkTreeViewColumn **focus_column);

Fills in path and focus_column with the current path and focus column. If the cursor isn’t currently set, then *path will be NULL. If no column currently has focus, then *focus_column will be NULL.

The returned GtkTreePath must be freed with gtk_tree_path_free() when you are done with it.

gtk_tree_view_row_activated ()

void
gtk_tree_view_row_activated (GtkTreeView *tree_view,
                             GtkTreePath *path,
                             GtkTreeViewColumn *column);

Activates the cell determined by path and column .

gtk_tree_view_expand_all ()

void
gtk_tree_view_expand_all (GtkTreeView *tree_view);

Recursively expands all nodes in the tree_view .

gtk_tree_view_collapse_all ()

void
gtk_tree_view_collapse_all (GtkTreeView *tree_view);

Recursively collapses all visible, expanded nodes in tree_view .

gtk_tree_view_expand_to_path ()

void
gtk_tree_view_expand_to_path (GtkTreeView *tree_view,
                              GtkTreePath *path);

Expands the row at path . This will also expand all parent rows of path as necessary.

Since 2.2

gtk_tree_view_expand_row ()

gboolean
gtk_tree_view_expand_row (GtkTreeView *tree_view,
                          GtkTreePath *path,
                          gboolean open_all);

Opens the row so its children are visible.

gtk_tree_view_collapse_row ()

gboolean
gtk_tree_view_collapse_row (GtkTreeView *tree_view,
                            GtkTreePath *path);

Collapses a row (hides its child rows, if they exist).

gtk_tree_view_map_expanded_rows ()

void
gtk_tree_view_map_expanded_rows (GtkTreeView *tree_view,
                                 GtkTreeViewMappingFunc func,
                                 gpointer data);

Calls func on all expanded rows.

gtk_tree_view_row_expanded ()

gboolean
gtk_tree_view_row_expanded (GtkTreeView *tree_view,
                            GtkTreePath *path);

Returns TRUE if the node pointed to by path is expanded in tree_view .

gtk_tree_view_set_reorderable ()

void
gtk_tree_view_set_reorderable (GtkTreeView *tree_view,
                               gboolean reorderable);

This function is a convenience function to allow you to reorder models that support the GtkTreeDragSourceIface and the GtkTreeDragDestIface. Both GtkTreeStore and GtkListStore support these. If reorderable is TRUE, then the user can reorder the model by dragging and dropping rows. The developer can listen to these changes by connecting to the model’s “row-inserted” and “row-deleted” signals. The reordering is implemented by setting up the tree view as a drag source and destination. Therefore, drag and drop can not be used in a reorderable view for any other purpose.

This function does not give you any degree of control over the order -- any reordering is allowed. If more control is needed, you should probably handle drag and drop manually.

gtk_tree_view_get_reorderable ()

gboolean
gtk_tree_view_get_reorderable (GtkTreeView *tree_view);

Retrieves whether the user can reorder the tree via drag-and-drop. See gtk_tree_view_set_reorderable().

gtk_tree_view_get_path_at_pos ()

gboolean
gtk_tree_view_get_path_at_pos (GtkTreeView *tree_view,
                               gint x,
                               gint y,
                               GtkTreePath **path,
                               GtkTreeViewColumn **column,
                               gint *cell_x,
                               gint *cell_y);

Finds the path at the point (x , y ), relative to bin_window coordinates (please see gtk_tree_view_get_bin_window()). That is, x and y are relative to an events coordinates. x and y must come from an event on the tree_view only where event->window == gtk_tree_view_get_bin_window(). It is primarily for things like popup menus. If path is non-NULL, then it will be filled with the GtkTreePath at that point. This path should be freed with gtk_tree_path_free(). If column is non-NULL, then it will be filled with the column at that point. cell_x and cell_y return the coordinates relative to the cell background (i.e. the background_area passed to gtk_cell_renderer_render()). This function is only meaningful if tree_view is realized. Therefore this function will always return FALSE if tree_view is not realized or does not have a model.

For converting widget coordinates (eg. the ones you get from GtkWidget::query-tooltip), please see gtk_tree_view_convert_widget_to_bin_window_coords().

gtk_tree_view_is_blank_at_pos ()

gboolean
gtk_tree_view_is_blank_at_pos (GtkTreeView *tree_view,
                               gint x,
                               gint y,
                               GtkTreePath **path,
                               GtkTreeViewColumn **column,
                               gint *cell_x,
                               gint *cell_y);

Determine whether the point (x , y ) in tree_view is blank, that is no cell content nor an expander arrow is drawn at the location. If so, the location can be considered as the background. You might wish to take special action on clicks on the background, such as clearing a current selection, having a custom context menu or starting rubber banding.

The x and y coordinate that are provided must be relative to bin_window coordinates. That is, x and y must come from an event on tree_view where event->window == gtk_tree_view_get_bin_window().

For converting widget coordinates (eg. the ones you get from GtkWidget::query-tooltip), please see gtk_tree_view_convert_widget_to_bin_window_coords().

The path , column , cell_x and cell_y arguments will be filled in likewise as for gtk_tree_view_get_path_at_pos(). Please see gtk_tree_view_get_path_at_pos() for more information.

Since 3.0

gtk_tree_view_get_cell_area ()

void
gtk_tree_view_get_cell_area (GtkTreeView *tree_view,
                             GtkTreePath *path,
                             GtkTreeViewColumn *column,
                             GdkRectangle *rect);

Fills the bounding rectangle in bin_window coordinates for the cell at the row specified by path and the column specified by column . If path is NULL, or points to a path not currently displayed, the y and height fields of the rectangle will be filled with 0. If column is NULL, the x and width fields will be filled with 0. The sum of all cell rects does not cover the entire tree; there are extra pixels in between rows, for example. The returned rectangle is equivalent to the cell_area passed to gtk_cell_renderer_render(). This function is only valid if tree_view is realized.

gtk_tree_view_get_background_area ()

void
gtk_tree_view_get_background_area (GtkTreeView *tree_view,
                                   GtkTreePath *path,
                                   GtkTreeViewColumn *column,
                                   GdkRectangle *rect);

Fills the bounding rectangle in bin_window coordinates for the cell at the row specified by path and the column specified by column . If path is NULL, or points to a node not found in the tree, the y and height fields of the rectangle will be filled with 0. If column is NULL, the x and width fields will be filled with 0. The returned rectangle is equivalent to the background_area passed to gtk_cell_renderer_render(). These background areas tile to cover the entire bin window. Contrast with the cell_area , returned by gtk_tree_view_get_cell_area(), which returns only the cell itself, excluding surrounding borders and the tree expander area.

gtk_tree_view_get_visible_rect ()

void
gtk_tree_view_get_visible_rect (GtkTreeView *tree_view,
                                GdkRectangle *visible_rect);

Fills visible_rect with the currently-visible region of the buffer, in tree coordinates. Convert to bin_window coordinates with gtk_tree_view_convert_tree_to_bin_window_coords(). Tree coordinates start at 0,0 for row 0 of the tree, and cover the entire scrollable area of the tree.

gtk_tree_view_get_visible_range ()

gboolean
gtk_tree_view_get_visible_range (GtkTreeView *tree_view,
                                 GtkTreePath **start_path,
                                 GtkTreePath **end_path);

Sets start_path and end_path to be the first and last visible path. Note that there may be invisible paths in between.

The paths should be freed with gtk_tree_path_free() after use.

Since 2.8

gtk_tree_view_get_bin_window ()

GdkWindow *
gtk_tree_view_get_bin_window (GtkTreeView *tree_view);

Returns the window that tree_view renders to. This is used primarily to compare to event->window to confirm that the event on tree_view is on the right window.

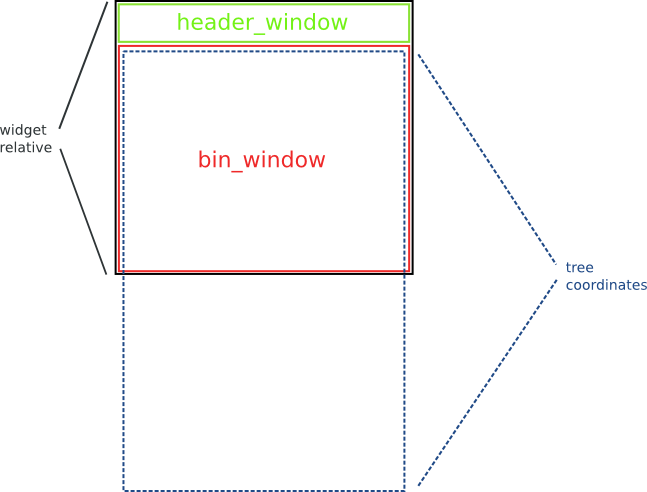

gtk_tree_view_convert_bin_window_to_tree_coords ()

void
gtk_tree_view_convert_bin_window_to_tree_coords
                               (GtkTreeView *tree_view,
                                gint bx,
                                gint by,
                                gint *tx,
                                gint *ty);

Converts bin_window coordinates to coordinates for the tree (the full scrollable area of the tree).

Since 2.12

gtk_tree_view_convert_bin_window_to_widget_coords ()

void
gtk_tree_view_convert_bin_window_to_widget_coords
                               (GtkTreeView *tree_view,
                                gint bx,
                                gint by,
                                gint *wx,
                                gint *wy);

Converts bin_window coordinates (see gtk_tree_view_get_bin_window()) to widget relative coordinates.

Since 2.12

gtk_tree_view_convert_tree_to_bin_window_coords ()

void
gtk_tree_view_convert_tree_to_bin_window_coords
                               (GtkTreeView *tree_view,
                                gint tx,
                                gint ty,
                                gint *bx,
                                gint *by);

Converts tree coordinates (coordinates in full scrollable area of the tree) to bin_window coordinates.

Since 2.12

gtk_tree_view_convert_tree_to_widget_coords ()

void
gtk_tree_view_convert_tree_to_widget_coords
                               (GtkTreeView *tree_view,
                                gint tx,
                                gint ty,
                                gint *wx,
                                gint *wy);

Converts tree coordinates (coordinates in full scrollable area of the tree) to widget coordinates.

Since 2.12

gtk_tree_view_convert_widget_to_bin_window_coords ()

void
gtk_tree_view_convert_widget_to_bin_window_coords
                               (GtkTreeView *tree_view,
                                gint wx,
                                gint wy,
                                gint *bx,
                                gint *by);

Converts widget coordinates to coordinates for the bin_window (see gtk_tree_view_get_bin_window()).

Since 2.12

gtk_tree_view_convert_widget_to_tree_coords ()

void
gtk_tree_view_convert_widget_to_tree_coords
                               (GtkTreeView *tree_view,
                                gint wx,
                                gint wy,
                                gint *tx,
                                gint *ty);

Converts widget coordinates to coordinates for the tree (the full scrollable area of the tree).

Since 2.12

gtk_tree_view_enable_model_drag_dest ()

void
gtk_tree_view_enable_model_drag_dest (GtkTreeView *tree_view,
                                      const GtkTargetEntry *targets,
                                      gint n_targets,
                                      GdkDragAction actions);

Turns tree_view into a drop destination for automatic DND. Calling this method sets “reorderable” to FALSE.

gtk_tree_view_enable_model_drag_source ()

void
gtk_tree_view_enable_model_drag_source
                               (GtkTreeView *tree_view,
                                GdkModifierType start_button_mask,
                                const GtkTargetEntry *targets,
                                gint n_targets,
                                GdkDragAction actions);

Turns tree_view into a drag source for automatic DND. Calling this method sets “reorderable” to FALSE.

gtk_tree_view_unset_rows_drag_source ()

void
gtk_tree_view_unset_rows_drag_source (GtkTreeView *tree_view);

Undoes the effect of gtk_tree_view_enable_model_drag_source(). Calling this method sets “reorderable” to FALSE.

gtk_tree_view_unset_rows_drag_dest ()

void
gtk_tree_view_unset_rows_drag_dest (GtkTreeView *tree_view);

Undoes the effect of gtk_tree_view_enable_model_drag_dest(). Calling this method sets “reorderable” to FALSE.

gtk_tree_view_set_drag_dest_row ()

void
gtk_tree_view_set_drag_dest_row (GtkTreeView *tree_view,
                                 GtkTreePath *path,
                                 GtkTreeViewDropPosition pos);

Sets the row that is highlighted for feedback. If path is NULL, an existing highlight is removed.

gtk_tree_view_get_drag_dest_row ()

void
gtk_tree_view_get_drag_dest_row (GtkTreeView *tree_view,
                                 GtkTreePath **path,
                                 GtkTreeViewDropPosition *pos);

Gets information about the row that is highlighted for feedback.

gtk_tree_view_get_dest_row_at_pos ()

gboolean
gtk_tree_view_get_dest_row_at_pos (GtkTreeView *tree_view,
                                   gint drag_x,
                                   gint drag_y,
                                   GtkTreePath **path,
                                   GtkTreeViewDropPosition *pos);

Determines the destination row for a given position. drag_x and drag_y are expected to be in widget coordinates. This function is only meaningful if tree_view is realized. Therefore this function will always return FALSE if tree_view is not realized or does not have a model.

gtk_tree_view_create_row_drag_icon ()

cairo_surface_t *
gtk_tree_view_create_row_drag_icon (GtkTreeView *tree_view,
                                    GtkTreePath *path);

Creates a cairo_surface_t representation of the row at path . This image is used for a drag icon.

gtk_tree_view_set_enable_search ()

void
gtk_tree_view_set_enable_search (GtkTreeView *tree_view,
                                 gboolean enable_search);

If enable_search is set, then the user can type in text to search through the tree interactively (this is sometimes called "typeahead find").

Note that even if this is FALSE, the user can still initiate a search using the “start-interactive-search” key binding.

gtk_tree_view_get_enable_search ()

gboolean
gtk_tree_view_get_enable_search (GtkTreeView *tree_view);

Returns whether or not the tree allows to start interactive searching by typing in text.

gtk_tree_view_get_search_column ()

gint
gtk_tree_view_get_search_column (GtkTreeView *tree_view);

Gets the column searched on by the interactive search code.

gtk_tree_view_set_search_column ()

void
gtk_tree_view_set_search_column (GtkTreeView *tree_view,
                                 gint column);

Sets column as the column where the interactive search code should search in for the current model.

If the search column is set, users can use the “start-interactive-search” key binding to bring up search popup. The enable-search property controls whether simply typing text will also start an interactive search.

Note that column refers to a column of the current model. The search column is reset to -1 when the model is changed.

gtk_tree_view_get_search_equal_func ()

GtkTreeViewSearchEqualFunc
gtk_tree_view_get_search_equal_func (GtkTreeView *tree_view);

Returns the compare function currently in use.

gtk_tree_view_set_search_equal_func ()

void
gtk_tree_view_set_search_equal_func (GtkTreeView *tree_view,
                                     GtkTreeViewSearchEqualFunc search_equal_func,
                                     gpointer search_user_data,
                                     GDestroyNotify search_destroy);

Sets the compare function for the interactive search capabilities; note that somewhat like strcmp() returning 0 for equality GtkTreeViewSearchEqualFunc returns FALSE on matches.

gtk_tree_view_get_search_entry ()

GtkEntry *
gtk_tree_view_get_search_entry (GtkTreeView *tree_view);

Returns the GtkEntry which is currently in use as interactive search entry for tree_view . In case the built-in entry is being used, NULL will be returned.

Since 2.10

gtk_tree_view_set_search_entry ()

void
gtk_tree_view_set_search_entry (GtkTreeView *tree_view,
                                GtkEntry *entry);

Sets the entry which the interactive search code will use for this tree_view . This is useful when you want to provide a search entry in our interface at all time at a fixed position. Passing NULL for entry will make the interactive search code use the built-in popup entry again.

Since 2.10

GtkTreeViewSearchPositionFunc ()

void
(*GtkTreeViewSearchPositionFunc) (GtkTreeView *tree_view,
                                  GtkWidget *search_dialog,
                                  gpointer user_data);

gtk_tree_view_get_search_position_func ()

GtkTreeViewSearchPositionFunc
gtk_tree_view_get_search_position_func
                               (GtkTreeView *tree_view);

Returns the positioning function currently in use.

Since 2.10

gtk_tree_view_set_search_position_func ()

void
gtk_tree_view_set_search_position_func
                               (GtkTreeView *tree_view,
                                GtkTreeViewSearchPositionFunc func,
                                gpointer data,
                                GDestroyNotify destroy);

Sets the function to use when positioning the search dialog.

Since 2.10

gtk_tree_view_get_fixed_height_mode ()

gboolean
gtk_tree_view_get_fixed_height_mode (GtkTreeView *tree_view);

Returns whether fixed height mode is turned on for tree_view .

Since 2.6

gtk_tree_view_set_fixed_height_mode ()

void
gtk_tree_view_set_fixed_height_mode (GtkTreeView *tree_view,
                                     gboolean enable);

Enables or disables the fixed height mode of tree_view . Fixed height mode speeds up GtkTreeView by assuming that all rows have the same height. Only enable this option if all rows are the same height and all columns are of type GTK_TREE_VIEW_COLUMN_FIXED.

Since 2.6

gtk_tree_view_get_hover_selection ()

gboolean
gtk_tree_view_get_hover_selection (GtkTreeView *tree_view);

Returns whether hover selection mode is turned on for tree_view .

Since 2.6

gtk_tree_view_set_hover_selection ()

void
gtk_tree_view_set_hover_selection (GtkTreeView *tree_view,
                                   gboolean hover);

Enables or disables the hover selection mode of tree_view . Hover selection makes the selected row follow the pointer. Currently, this works only for the selection modes GTK_SELECTION_SINGLE and GTK_SELECTION_BROWSE.

Since 2.6

gtk_tree_view_get_hover_expand ()

gboolean
gtk_tree_view_get_hover_expand (GtkTreeView *tree_view);

Returns whether hover expansion mode is turned on for tree_view .

Since 2.6

gtk_tree_view_set_hover_expand ()

void
gtk_tree_view_set_hover_expand (GtkTreeView *tree_view,
                                gboolean expand);

Enables or disables the hover expansion mode of tree_view . Hover expansion makes rows expand or collapse if the pointer moves over them.

Since 2.6

GtkTreeDestroyCountFunc ()

void
(*GtkTreeDestroyCountFunc) (GtkTreeView *tree_view,
                            GtkTreePath *path,
                            gint children,
                            gpointer user_data);

gtk_tree_view_set_destroy_count_func ()

void
gtk_tree_view_set_destroy_count_func (GtkTreeView *tree_view,
                                      GtkTreeDestroyCountFunc func,
                                      gpointer data,
                                      GDestroyNotify destroy);

This function should almost never be used. It is meant for private use by ATK for determining the number of visible children that are removed when the user collapses a row, or a row is deleted.

GtkTreeViewRowSeparatorFunc ()

gboolean
(*GtkTreeViewRowSeparatorFunc) (GtkTreeModel *model,
                                GtkTreeIter *iter,
                                gpointer data);

Function type for determining whether the row pointed to by iter should be rendered as a separator. A common way to implement this is to have a boolean column in the model, whose values the GtkTreeViewRowSeparatorFunc returns.

gtk_tree_view_get_row_separator_func ()

GtkTreeViewRowSeparatorFunc
gtk_tree_view_get_row_separator_func (GtkTreeView *tree_view);

Returns the current row separator function.

Since 2.6

gtk_tree_view_set_row_separator_func ()

void
gtk_tree_view_set_row_separator_func (GtkTreeView *tree_view,
                                      GtkTreeViewRowSeparatorFunc func,
                                      gpointer data,
                                      GDestroyNotify destroy);

Sets the row separator function, which is used to determine whether a row should be drawn as a separator. If the row separator function is NULL, no separators are drawn. This is the default value.

Since 2.6

gtk_tree_view_get_rubber_banding ()

gboolean
gtk_tree_view_get_rubber_banding (GtkTreeView *tree_view);

Returns whether rubber banding is turned on for tree_view . If the selection mode is GTK_SELECTION_MULTIPLE, rubber banding will allow the user to select multiple rows by dragging the mouse.

Since 2.10

gtk_tree_view_set_rubber_banding ()

void
gtk_tree_view_set_rubber_banding (GtkTreeView *tree_view,
                                  gboolean enable);

Enables or disables rubber banding in tree_view . If the selection mode is GTK_SELECTION_MULTIPLE, rubber banding will allow the user to select multiple rows by dragging the mouse.

Since 2.10

gtk_tree_view_is_rubber_banding_active ()

gboolean
gtk_tree_view_is_rubber_banding_active
                               (GtkTreeView *tree_view);

Returns whether a rubber banding operation is currently being done in tree_view .

Since 2.12

gtk_tree_view_get_enable_tree_lines ()

gboolean
gtk_tree_view_get_enable_tree_lines (GtkTreeView *tree_view);

Returns whether or not tree lines are drawn in tree_view .

Since 2.10

gtk_tree_view_set_enable_tree_lines ()

void
gtk_tree_view_set_enable_tree_lines (GtkTreeView *tree_view,
                                     gboolean enabled);

Sets whether to draw lines interconnecting the expanders in tree_view . This does not have any visible effects for lists.

Since 2.10

gtk_tree_view_get_grid_lines ()

GtkTreeViewGridLines
gtk_tree_view_get_grid_lines (GtkTreeView *tree_view);

Returns which grid lines are enabled in tree_view .

Since 2.10

gtk_tree_view_set_grid_lines ()

void
gtk_tree_view_set_grid_lines (GtkTreeView *tree_view,
                              GtkTreeViewGridLines grid_lines);

Sets which grid lines to draw in tree_view .

Since 2.10

gtk_tree_view_set_tooltip_row ()

void
gtk_tree_view_set_tooltip_row (GtkTreeView *tree_view,
                               GtkTooltip *tooltip,
                               GtkTreePath *path);

Sets the tip area of tooltip to be the area covered by the row at path . See also gtk_tree_view_set_tooltip_column() for a simpler alternative. See also gtk_tooltip_set_tip_area().

Since 2.12

gtk_tree_view_set_tooltip_cell ()

void
gtk_tree_view_set_tooltip_cell (GtkTreeView *tree_view,
                                GtkTooltip *tooltip,
                                GtkTreePath *path,
                                GtkTreeViewColumn *column,
                                GtkCellRenderer *cell);

Sets the tip area of tooltip to the area path , column and cell have in common. For example if path is NULL and column is set, the tip area will be set to the full area covered by column . See also gtk_tooltip_set_tip_area().

Note that if path is not specified and cell is set and part of a column containing the expander, the tooltip might not show and hide at the correct position. In such cases path must be set to the current node under the mouse cursor for this function to operate correctly.

See also gtk_tree_view_set_tooltip_column() for a simpler alternative.

Since 2.12

gtk_tree_view_get_tooltip_context ()

gboolean
gtk_tree_view_get_tooltip_context (GtkTreeView *tree_view,
                                   gint *x,
                                   gint *y,
                                   gboolean keyboard_tip,
                                   GtkTreeModel **model,
                                   GtkTreePath **path,
                                   GtkTreeIter *iter);

This function is supposed to be used in a “query-tooltip” signal handler for GtkTreeView. The x , y and keyboard_tip values which are received in the signal handler, should be passed to this function without modification.

The return value indicates whether there is a tree view row at the given coordinates (TRUE) or not (FALSE) for mouse tooltips. For keyboard tooltips the row returned will be the cursor row. When TRUE, then any of model , path and iter which have been provided will be set to point to that row and the corresponding model. x and y will always be converted to be relative to tree_view ’s bin_window if keyboard_tooltip is FALSE.

Since 2.12

gtk_tree_view_get_tooltip_column ()

gint
gtk_tree_view_get_tooltip_column (GtkTreeView *tree_view);

Returns the column of tree_view ’s model which is being used for displaying tooltips on tree_view ’s rows.

Since 2.12

gtk_tree_view_set_tooltip_column ()

void
gtk_tree_view_set_tooltip_column (GtkTreeView *tree_view,
                                  gint column);

If you only plan to have simple (text-only) tooltips on full rows, you can use this function to have GtkTreeView handle these automatically for you. column should be set to the column in tree_view ’s model containing the tooltip texts, or -1 to disable this feature.

When enabled, “has-tooltip” will be set to TRUE and tree_view will connect a “query-tooltip” signal handler.

Note that the signal handler sets the text with gtk_tooltip_set_markup(), so &, <, etc have to be escaped in the text.

Since 2.12

struct GtkTreeView

struct GtkTreeView;

enum GtkTreeViewDropPosition

An enum for determining where a dropped row goes.

GtkTreeViewPrivate

typedef struct _GtkTreeViewPrivate GtkTreeViewPrivate;

enum GtkTreeViewGridLines

Used to indicate which grid lines to draw in a tree view.

The “activate-on-single-click” property

  “activate-on-single-click” gboolean

The activate-on-single-click property specifies whether the "row-activated" signal will be emitted after a single click.

Flags: Read / Write

Default value: FALSE

Since 3.8

The “enable-grid-lines” property

  “enable-grid-lines”        GtkTreeViewGridLines

Whether grid lines should be drawn in the tree view.

Flags: Read / Write

Default value: GTK_TREE_VIEW_GRID_LINES_NONE

The “enable-search” property

  “enable-search”            gboolean

View allows user to search through columns interactively.

Flags: Read / Write

Default value: TRUE

The “enable-tree-lines” property

  “enable-tree-lines”        gboolean

Whether tree lines should be drawn in the tree view.

Flags: Read / Write

Default value: FALSE

The “expander-column” property

  “expander-column”          GtkTreeViewColumn *

Set the column for the expander column.

Flags: Read / Write

The “fixed-height-mode” property

  “fixed-height-mode”        gboolean

Setting the ::fixed-height-mode property to TRUE speeds up GtkTreeView by assuming that all rows have the same height. Only enable this option if all rows are the same height. Please see gtk_tree_view_set_fixed_height_mode() for more information on this option.

Flags: Read / Write

Default value: FALSE

Since 2.4

The “headers-clickable” property

  “headers-clickable”        gboolean
