GtkCssProvider

GtkCssProvider — CSS-like styling for widgets

Signals

void parsing-error Run Last

Types and Values

Object Hierarchy

    GBoxed
    ╰── GtkCssSection
    GObject
    ╰── GtkCssProvider

Implemented Interfaces

GtkCssProvider implements GtkStyleProvider and GtkStyleProviderPrivate.

Includes

#include <gtk/gtk.h>

Description

GtkCssProvider is an object implementing the GtkStyleProvider interface. It is able to parse CSS-like input in order to style widgets.

Default files

An application can cause GTK+ to parse a specific CSS style sheet by calling gtk_css_provider_load_from_file() and adding the provider with gtk_style_context_add_provider() or gtk_style_context_add_provider_for_screen(). In addition, certain files will be read when GTK+ is initialized. First, the file $XDG_CONFIG_HOME/gtk-3.0/gtk.css is loaded if it exists. Then, GTK+ tries to load $HOME/.themes/theme-name/gtk-3.0/gtk.css, falling back to datadir/share/themes/theme-name/gtk-3.0/gtk.css, where theme-name is the name of the current theme (see the “gtk-theme-name” setting) and datadir is the prefix configured when GTK+ was compiled, unless overridden by the GTK_DATA_PREFIX environment variable.

Style sheets

The basic structure of the style sheets understood by this provider is a series of statements, which are either rule sets or “@-rules”, separated by whitespace.

A rule set consists of a selector and a declaration block, which is a series of declarations enclosed in curly braces ({ and }). The declarations are separated by semicolons (;). Multiple selectors can share the same declaration block, by putting all the separators in front of the block, separated by commas.

An example of a rule set with two selectors:

1
2
3
4
GtkButton, GtkEntry {
    color: #ff00ea;
    font: Comic Sans 12
}


Selectors

Selectors work very similar to the way they do in CSS, with widget class names taking the role of element names, and widget names taking the role of IDs. When used in a selector, widget names must be prefixed with a '#' character. The “*” character represents the so-called universal selector, which matches any widget.

To express more complicated situations, selectors can be combined in various ways:

  • To require that a widget satisfies several conditions, combine several selectors into one by concatenating them. E.g. GtkButton#button1 matches a GtkButton widget with the name button1.

  • To only match a widget when it occurs inside some other widget, write the two selectors after each other, separated by whitespace. E.g. GtkToolBar GtkButton matches GtkButton widgets that occur inside a GtkToolBar.

  • In the previous example, the GtkButton is matched even if it occurs deeply nested inside the toolbar. To restrict the match to direct children of the parent widget, insert a “>” character between the two selectors. E.g. GtkNotebook > GtkLabel matches GtkLabel widgets that are direct children of a GtkNotebook.

Examples of widget classes and names in selectors

Theme labels that are descendants of a window:

1
2
3
GtkWindow GtkLabel {
    background-color: #898989
}

Theme notebooks, and anything that’s within these:

1
2
3
GtkNotebook {
    background-color: #a939f0
}

Theme combo boxes, and entries that are direct children of a notebook:

1
2
3
4
5
GtkComboBox,
GtkNotebook > GtkEntry {
    color: @fg_color;
    background-color: #1209a2
}

Theme any widget within a GtkBin:

1
2
3
GtkBin * {
    font: Sans 20
}

Theme a label named title-label:

1
2
3
GtkLabel#title-label {
    font: Sans 15
}

Theme any widget named main-entry:

1
2
3
#main-entry {
    background-color: #f0a810
}

Widgets may also define style classes, which can be used for matching. When used in a selector, style classes must be prefixed with a “.” character.

Refer to the documentation of individual widgets to learn which style classes they define and see Style Classes and Regions for a list of all style classes used by GTK+ widgets.

Note that there is some ambiguity in the selector syntax when it comes to differentiation widget class names from regions. GTK+ currently treats a string as a widget class name if it contains any uppercase characters (which should work for more widgets with names like GtkLabel).

Examples for style classes in selectors

Theme all widgets defining the class entry:

1
2
3
.entry {
    color: #39f1f9;
}

Theme spinbuttons’ entry:

1
2
3
GtkSpinButton.entry {
    color: #900185
}

In complicated widgets like e.g. a GtkNotebook, it may be desirable to style different parts of the widget differently. To make this possible, container widgets may define regions, whose names may be used for matching in selectors.

Some containers allow to further differentiate between regions by applying so-called pseudo-classes to the region. For example, the tab region in GtkNotebook allows to single out the first or last tab by using the :first-child or :last-child pseudo-class. When used in selectors, pseudo-classes must be prefixed with a ':' character.

Refer to the documentation of individual widgets to learn which regions and pseudo-classes they define and see Style Classes and Regions for a list of all regions used by GTK+ widgets.

Examples for regions in selectors

Theme any label within a notebook:

1
2
3
GtkNotebook GtkLabel {
    color: #f90192;
}

Theme labels within notebook tabs:

1
2
3
GtkNotebook tab GtkLabel {
    color: #703910;
}

Theme labels in the any first notebook tab, both selectors are equivalent:

1
2
3
4
GtkNotebook tab:nth-child(first) GtkLabel,
GtkNotebook tab:first-child GtkLabel {
    color: #89d012;
}

Another use of pseudo-classes is to match widgets depending on their state. This is conceptually similar to the :hover, :active or :focus pseudo-classes in CSS. The available pseudo-classes for widget states are :active, :prelight (or :hover), :insensitive, :selected, :focused and :inconsistent.

Examples for styling specific widget states

Theme active (pressed) buttons:

1
2
3
GtkButton:active {
    background-color: #0274d9;
}

Theme buttons with the mouse pointer on it, both are equivalent:

1
2
3
4
GtkButton:hover,
GtkButton:prelight {
    background-color: #3085a9;
}

Theme insensitive widgets, both are equivalent:

1
2
3
4
:insensitive,
*:insensitive {
    background-color: #320a91;
}

Theme selection colors in entries:

1
2
3
GtkEntry:selected {
    background-color: #56f9a0;
}

Theme focused labels:

1
2
3
GtkLabel:focused {
    background-color: #b4940f;
}

Theme inconsistent checkbuttons:

1
2
3
GtkCheckButton:inconsistent {
    background-color: #20395a;
}

Widget state pseudoclasses may only apply to the last element in a selector.

To determine the effective style for a widget, all the matching rule sets are merged. As in CSS, rules apply by specificity, so the rules whose selectors more closely match a widget path will take precedence over the others.


@ Rules

GTK+’s CSS supports the @import rule, in order to load another CSS style sheet in addition to the currently parsed one.

An example for using the @import rule:

1
@import url ("path/to/common.css");

In order to extend key bindings affecting different widgets, GTK+ supports the @binding-set rule to parse a set of bind/unbind directives, see GtkBindingSet for the supported syntax. Note that the binding sets defined in this way must be associated with rule sets by setting the gtk-key-bindings style property.

Customized key bindings are typically defined in a separate gtk-keys.css CSS file and GTK+ loads this file according to the current key theme, which is defined by the “gtk-key-theme-name” setting.

An example for using the @binding rule:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
@binding-set binding-set1 {
  bind "<alt>Left" { "move-cursor" (visual-positions, -3, 0) };
  unbind "End";
};

@binding-set binding-set2 {
  bind "<alt>Right" { "move-cursor" (visual-positions, 3, 0) };
  bind "<alt>KP_space" { "delete-from-cursor" (whitespace, 1)
                         "insert-at-cursor" (" ") };
};

GtkEntry {
  gtk-key-bindings: binding-set1, binding-set2;
}

GTK+ also supports an additional @define-color rule, in order to define a color name which may be used instead of color numeric representations. Also see the “gtk-color-scheme” setting for a way to override the values of these named colors.

An example for defining colors:

1
2
3
4
5
@define-color bg_color #f9a039;

* {
    background-color: @bg_color;
}


Symbolic colors

Besides being able to define color names, the CSS parser is also able to read different color expressions, which can also be nested, providing a rich language to define colors which are derived from a set of base colors.

An example for using symbolic colors:

1
2
3
4
5
6
7
8
9
10
11
@define-color entry-color shade (@bg_color, 0.7);

GtkEntry {
    background-color: @entry-color;
}

GtkEntry:focused {
    background-color: mix (@entry-color,
                           shade (#fff, 0.5),
                           0.8);
}


Specifying Colors

There are various ways to express colors in GTK+ CSS.

rgb(r, g, b)

An opaque color.

  • r, g, b can be either integers between 0 and 255, or percentages.

1
2
color: rgb(128, 10, 54);
background-color: rgb(20%, 30%, 0%);

rgba(r, g, b, a)

A translucent color.

  • r, g, b can be either integers between 0 and 255, or percentages.

  • a is a floating point number between 0 and 1.

1
color: rgb(128, 10, 54, 0.5);

#xxyyzz

An opaque color.

  • xx, yy, zz are hexadecimal numbers specifying r, g, b variants with between 1 and 4 hexadecimal digits per component.

1
2
3
color: #f0c;
background-color: #ff00cc;
border-color: #ffff0000cccc;

@name

Reference to a color that has been defined with @define-color

1
color: @bg_color;

mix(color1, color2, factor)

A linear combination of color1 and color2.

  • factor is a floating point number between 0 and 1.

1
color: mix(#ff1e0a, @bg_color, 0.8);

shade(color, factor)

A lighter or darker variant of color.

  • factor is a floating point number.

1
color: shade(@fg_color, 0.5);

lighter(color)

A lighter variant of color.

1
color: lighter(@fg_color);

darker(color)

A darker variant of color.

1
color: darker(@bg_color);

alpha(color, factor)

Modifies passed color’s alpha by a factor.

  • factor is a floating point number. factor < 1.0 results in a more transparent color while factor > 1.0 results in a more opaque color.

1
color: alpha(@fg_color, 0.5);


Gradients

Linear or radial gradients can be used as background images.

Linear Gradients

A linear gradient along the line from (start_x, start_y) to (end_x, end_y) is specified using the following syntax:

-gtk-gradient (linear, start_x start_y, end_x end_y, color-stop (position, color), ...)

  • start_x and end_x can be either a floating point number between 0 and 1, or one of the special values: “left”, “right”, or “center”.

  • start_y and end_y can be either a floating point number between 0 and 1, or one of the special values: “top”, “bottom” or “center”.

  • position is a floating point number between 0 and 1.

  • color is a color expression (see above).

The color-stop can be repeated multiple times to add more than one color stop. “from (color)” and “to (color)” can be used as abbreviations for color stops with position 0 and 1, respectively.

Example: Linear Gradient

1
2
3
-gtk-gradient (linear,
               left top, right bottom,
               from(@yellow), to(@blue));

Example: Linear Gradient 2

1
2
3
4
5
-gtk-gradient (linear,
               0 0, 0 1,
               color-stop(0, @yellow),
               color-stop(0.2, @blue),
               color-stop(1, #0f0))

Radial Gradients

A radial gradient along the two circles defined by (start_x, start_y, start_radius) and (end_x, end_y, end_radius) is specified using the following syntax:

-gtk-gradient (radial, start_x start_y, start_radius, end_x end_y, end_radius, color-stop (position, color), ...)

where start_radius and end_radius are floating point numbers and the other parameters are as before.

Example: Radial Gradient

1
2
3
4
-gtk-gradient (radial,
               center center, 0,
               center center, 1,
               from(@yellow), to(@green))

Example: Radial Gradient 2

1
2
3
4
5
6
7
-gtk-gradient (radial,
               0.4 0.4, 0.1,
               0.6 0.6, 0.7,
               color-stop (0, #f00),
               color-stop (0.1, #a0f),
               color-stop (0.2, @yellow),
               color-stop (1, @green))


Border images

Images and gradients can also be used in slices for the purpose of creating scalable borders. For more information, see the CSS3 documentation for the border-image property.

The parameters of the slicing process are controlled by four separate properties.

  • Image Source

  • Image Slice

  • Image Width

  • Image Repeat

Note that you can use the border-image shorthand property to set values for the properties at the same time.

Image Source

The border image source can be specified either as a URL or a gradient:

1
border-image-source: url(path);

or

1
border-image-source: -gtk-gradient(...);

Image Slice

1
border-image-slice: top right bottom left;

The sizes specified by the top, right, bottom, and left parameters are the offsets (in pixels) from the relevant edge where the image should be “cut off” to build the slices used for the rendering of the border.

Image Width

1
border-image-width: top right bottom left;

The sizes specified by the top , right , bottom and left parameters are inward distances from the border box edge, used to specify the rendered size of each slice determined by border-image-slice. If this property is not specified, the values of border-width will be used as a fallback.

Image Repeat

Specifies how the image slices should be rendered in the area outlined by border-width.

1
border-image-repeat: [stretch|repeat|round|space];

or

1
border-image-repeat: [stretch|repeat|round|space] [stretch|repeat|round|space];

  • The default (stretch) is to resize the slice to fill in the whole allocated area.

  • If the value of this property is “repeat”, the image slice will be tiled to fill the area.

  • If the value of this property is “round”, the image slice will be tiled to fill the area, and scaled to fit it exactly a whole number of times.

  • If the value of this property is “space”, the image slice will be tiled to fill the area, and if it doesn’t fit it exactly a whole number of times, the extra space is distributed as padding around the slices.

  • If two options are specified, the first one affects the horizontal behaviour and the second one the vertical behaviour. If only one option is specified, it affects both.

Example: Border Image

1
border-image: url("gradient1.png") 10 10 10 10;

Example: Repeating Border Image

1
border-image: url("gradient1.png") 10 10 10 10 repeat;

Example: Stetched Border Image

1
border-image: url("gradient1.png") 10 10 10 10 stretch;


Supported Properties

Properties are the part that differ the most to common CSS, not all properties are supported (some are planned to be supported eventually, some others are meaningless or don't map intuitively in a widget based environment).

The currently supported properties are:

engine: [name|none];

  • none means to use the default (ie. builtin engine)

    1
    engine: clearlooks;

background-color: [color|transparent];

color: [color|transparent];

border-color: [color|transparent]{1,4};

  • color: See Specifying Colors

  • Four values used to specify: top right bottom left

  • Three values used to specify: top vertical bottom

  • Two values used to specify: horizontal vertical

  • One value used to specify: color

    1
    border-color: red green blue;

border-top-color: [color|transparent];

border-right-color: [color|transparent];

border-bottom-color: [color|transparent];

border-left-color: [color|transparent];

font-family: name;

The name of the font family or font name to use.

  • Note: unlike the CSS2 Specification this does not support using a prioritized list of font family names and/or generic family names.

1
font-family: Sans, Cantarell;

font-style: [normal|oblique|italic];

Selects between normal, italic and oblique faces within a font family.

1
font-style: italic;

font-variant: [normal|small-caps];

In a small-caps font the lower case letters look similar to the uppercase ones, but in a smaller size and with slightly different proportions.

1
font-variant: normal;

font-weight: [normal|bold|bolder|lighter|100|200|300|400|500|600|700|800|900];

Selects the weight of the font. The values '100' to '900' form an ordered sequence, where each number indicates a weight that is at least as dark as its predecessor. The keyword 'normal' is synonymous with '400', and 'bold' is synonymous with '700'. Keywords other than 'normal' and 'bold' have been shown to be often confused with font names and a numerical scale was therefore chosen for the 9-value list.

font-size: [absolute-size|relative-size|percentage];

  • absolute-size: The size in normal size units like px, pt, and em. Or symbolic sizes like xx-small, x-small, small, medium, large, x-large, xx-large.

  • relative-size: larger or smaller relative to the parent.

  • percentage: A percentage difference from the nominal size.

    1
    font-size: 12px;

font-stretch: [face]

Selects a normal, condensed, or expanded face from a font family.

Absolute keyword values have the following ordering, from narrowest to widest:

  • ultra-condensed

  • extra-condensed

  • condensed

  • semi-condensed

  • normal

  • semi-expanded

  • expanded

  • extra-expanded

  • ultra-expanded

font: family variant [size];

A shorthand for setting a few font properties at once.

margin: [length|percentage]{1,4};

A shorthand for setting the margin space required on all sides of an element.

  • Four values used to specify: top right bottom left

  • Three values used to specify: top horizontal bottom

  • Two values used to specify: vertical horizontal

  • One value used to specify: margin

    1
    margin: 1em 2em 4em;

margin-top: [length|percentage];

Sets the margin space required on the top of an element.

1
margin-top: 10px;

margin-right: [length|percentage];

Sets the margin space required on the right of an element.

1
margin-right: 0px;

margin-bottom: [length|percentage];

Sets the margin space required on the bottom of an element.

1
margin-bottom: 10px;

margin-left: [length|percentage];

Sets the margin space required on the left of an element.

1
margin-left: 1em;

padding: [length|percentage]{1,4};

A shorthand for setting the padding space required on all sides of an element. The padding area is the space between the content of the element and its border.

  • Four values used to specify: top right bottom left

  • Three values used to specify: top horizontal bottom

  • Two values used to specify: vertical horizontal

  • One value used to specify: padding

    1
    padding: 1em 2em 4em;

padding-top: [length|percentage];

Sets the padding space required on the top of an element.

1
padding-top: 10px;

padding-right: [length|percentage];

Sets the padding space required on the right of an element.

1
padding-right: 0px;

padding-bottom: [length|percentage];

Sets the padding space required on the bottom of an element.

1
padding-bottom: 10px;

padding-left: [length|percentage];

Sets the padding space required on the left of an element.

1
padding-left: 1em;

border-width: [width]{1,4};

A shorthand for setting the border width on all sides of an element.

  • Four values used to specify: top right bottom left

  • Three values used to specify: top vertical bottom

  • Two values used to specify: horizontal vertical

  • One value used to specify: width

    1
    border-width: 1px 2px 4px;

border-top-width: [width];

Sets the border width required on the top of an element.

1
border-top: 10px;

border-right-width: [width];

Sets the border width required on the right of an element.

1
border-right: 0px;

border-bottom-width: [width];

Sets the border width required on the bottom of an element.

1
border-bottom: 10px;

border-left-width: [width];

Sets the border width required on the left of an element.

1
border-left: 1em;

border-radius: [length|percentage]{1,4};

Allows setting how rounded all border corners are.

  • Four values used to specify: top-left top-right bottom-right bottom-left

  • Three values used to specify: top-left top-right-and-bottom-left bottom-right

  • Two values used to specify: top-left-and-bottom-right top-right-and-bottom-left

  • One value used to specify: radius on all sides

    1
    border-radius: 8px

border-style: [none|solid|inset|outset]{1,4};

A shorthand property for setting the line style for all four sides of the elements border.

  • Four values used to specify: top right bottom left;

  • Three values used to specify: top horizontal bottom

  • Two values used to specify: vertical horizontal

  • One value used to specify: style

    1
    border-style: solid;

border-image: source / width ; A shorthand

for setting an image on the borders of elements. See Border Images.

1
border-image: url("/path/to/image.png") 3 4 4 3 repeat stretch;

border-image-source: [none|url|linear-gradient]{1,4};

Defines the image to use instead of the style of the border. If this property is set to none, the style defined by border-style is used instead.

1
border-image-source: url("/path/to/image.png");

border-image-slice: [number|percentage]{1,4};

Divides the image specified by border-image-source in nine regions: the four corners, the four edges and the middle. It does this by specifying 4 inwards offsets.

  • Four values used to specify: top right bottom left;

  • Three values used to specify: top vertical bottom

  • Two values used to specify: horizontal vertical

  • One value used to specify: slice

    1
    border-image-slice: 3 3 4 3;

border-image-width: [length|percentage]{1,4};

Defines the offset to use for dividing the border image in nine parts, the top-left corner, central top edge, top-right-corner, central right edge, bottom-right corner, central bottom edge, bottom-left corner, and central right edge. They represent inward distance from the top, right, bottom, and left edges.

  • Four values used to specify: top right bottom left;

  • Three values used to specify: top horizontal bottom

  • Two values used to specify: vertical horizontal

  • One value used to specify: width

    1
    border-image-width: 4px 0 4px 0;

border-image-repeat: [none|url|linear-gradient]{1,4};

Defines how the middle part of a border image is handled to match the size of the border. It has a one-value syntax which describes the behavior for all sides, and a two-value syntax that sets a different value for the horizontal and vertical behavior.

  • Two values used to specify: horizontal vertical

  • One value used to specify: repeat

    1
    border-image-repeat: stretch;

background-image: [none|url|linear-gradient], ...

Sets one or several background images for an element. The images are drawn on successive stacking context layers, with the first specified being drawn as if it is the closest to the user. The borders of the element are then drawn on top of them, and the background-color is drawn beneath them.

  • There can be several sources listed, separated by commas.

    1
    2
    3
    background-image: gtk-gradient (linear,
                                 left top, right top,
                                 from (#fff), to (#000));

background-repeat: [repeat|no-repeat|space|round|repeat-x|repeat-y];

Defines how background images are repeated. A background image can be repeated along the horizontal axis, the vertical axis, both, or not repeated at all.

  • repeat: The image is repeated in the given direction as much as needed to cover the whole background image painting area. The last image may be clipped if the whole thing won't fit in the remaining area.

  • space: The image is repeated in the given direction as much as needed to cover most of the background image painting area, without clipping an image. The remaining non-covered space is spaced out evenly between the images. The first and last images touches the edge of the element. The value of the background-position CSS property is ignored for the concerned direction, except if one single image is greater than the background image painting area, which is the only case where an image can be clipped when the space value is used.

  • round: The image is repeated in the given direction as much as needed to cover most of the background image painting area, without clipping an image. If it doesn't cover exactly the area, the tiles are resized in that direction in order to match it.

  • no-repeat: The image is not repeated (and hence the background image painting area will not necessarily been entirely covered). The position of the non-repeated background image is defined by the background-position CSS property.

  • Note if not specified, the style doesn’t respect the CSS3 specification, since the background will be stretched to fill the area.

    1
    background-repeat: no-repeat;

text-shadow: horizontal_offset vertical_offset [ blur_radius ] color;

A shadow list can be applied to text or symbolic icons, using the CSS3 text-shadow syntax, as defined in the CSS3 Specification.

  • The offset of the shadow is specified with the horizontal_offset and vertical_offset parameters.

  • The optional blur radius is parsed, but it is currently not rendered by the GTK+ theming engine.

To set a shadow on an icon, use the icon-shadow property instead, with the same syntax.

To set multiple shadows on an element, you can specify a comma-separated list of shadow elements in the text-shadow or icon-shadow property. Shadows are always rendered front to back (i.e. the first shadow specified is on top of the others). Shadows can thus overlay each other, but they can never overlay the text or icon itself, which is always rendered on top of the shadow layer.

1
text-shadow: text-shadow: 1 1 0 blue, -4 -4 red;

box-shadow: [ inset ] horizontal_offset vertical_offset blur_radius color;

Themes can apply shadows on framed elements using the CSS3 box-shadow syntax, as defined in the CSS3 Specification.

  • A positive offset will draw a shadow that is offset to the right (down) of the box,

  • A negative offset to the left (top).

  • The optional spread parameter defines an additional distance to expand the shadow shape in all directions, by the specified radius.

  • The optional blur radius parameter is parsed, but it is currently not rendered by the GTK+ theming engine.

  • The inset parameter defines whether the drop shadow should be rendered inside or outside the box canvas.

To set multiple box-shadows on an element, you can specify a comma-separated list of shadow elements in the box-shadow property. Shadows are always rendered front to back (i.e. the first shadow specified is on top of the others) so they may overlap other boxes or other shadows.

1
box-shadow: inset 0 1px 1px alpha(black, 0.1);

transition: duration s|ms [loop];

Styles can specify transitions that will be used to create a gradual change in the appearance when a widget state changes.

  • The duration is the amount of time that the animation will take for a complete cycle from start to end.

  • If the loop option is given, the animation will be repated until the state changes again.

  • The option after the duration determines the transition function from a small set of predefined functions.

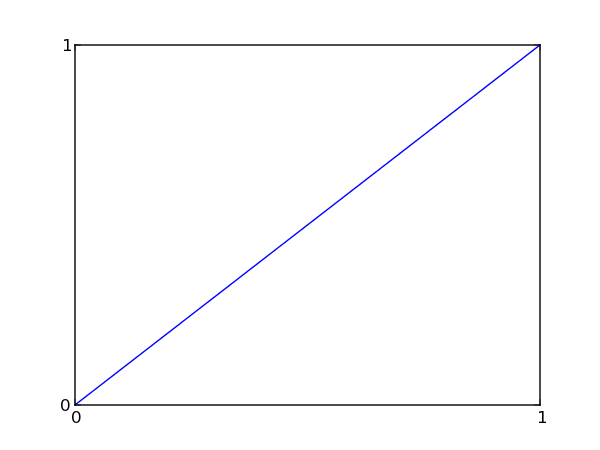

  • Linear

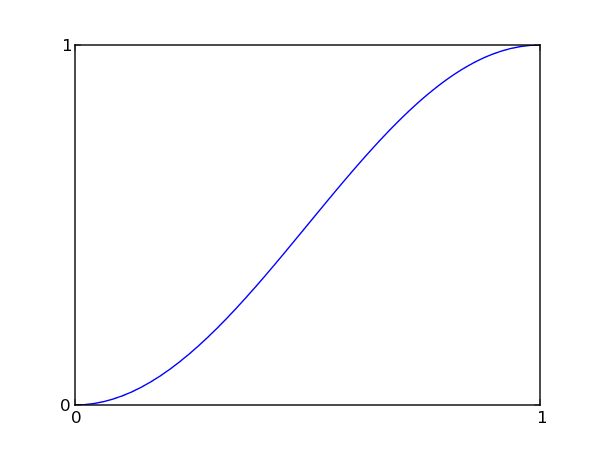

  • Ease transition

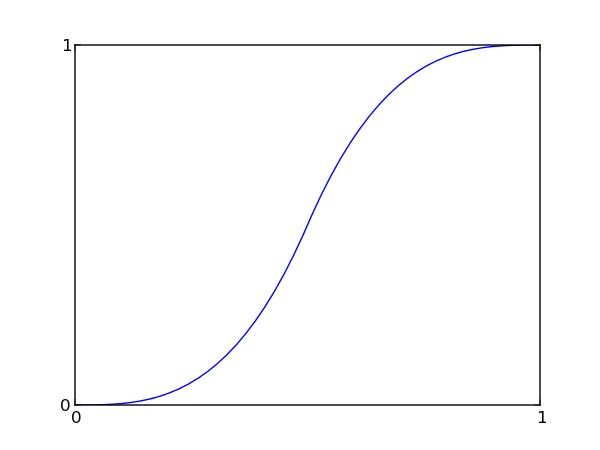

  • Ease-in-out transition

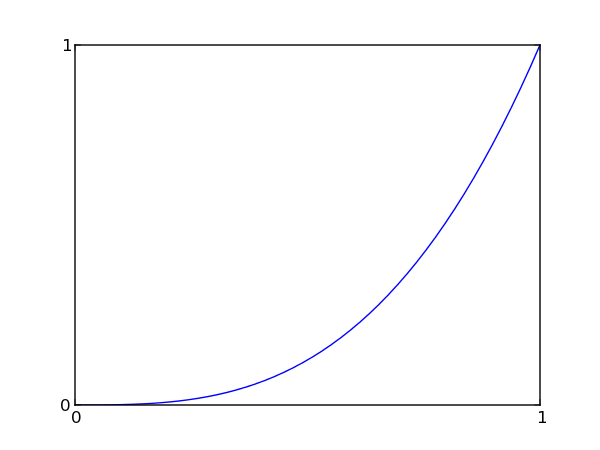

  • Ease-in transition

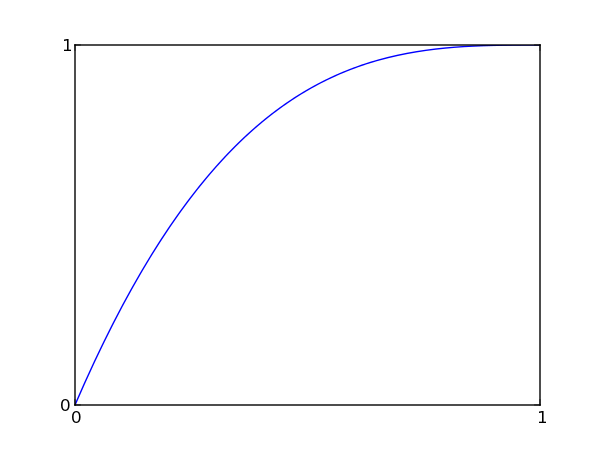

  • Ease-out transition

1
transition: 150ms ease-in-out;

gtk-key-bindings: binding1, binding2, ...;

Key binding set name list.

Other Properties

GtkThemingEngines can register their own, engine-specific style properties with the function gtk_theming_engine_register_property(). These properties can be set in CSS like other properties, using a name of the form -namespace-name, where namespace is typically the name of the theming engine, and name is the name of the property. Style properties that have been registered by widgets using gtk_widget_class_install_style_property() can also be set in this way, using the widget class name for namespace.

An example for using engine-specific style properties:

1
2
3
4
5
6
* {
    engine: clearlooks;
    border-radius: 4;
    -GtkPaned-handle-size: 6;
    -clearlooks-colorize-scrollbar: false;
}

Functions

gtk_css_provider_get_default ()

GtkCssProvider *
gtk_css_provider_get_default (void);

Returns the provider containing the style settings used as a fallback for all widgets.

Returns

The provider used for fallback styling. This memory is owned by GTK+, and you must not free it.

[transfer none]


gtk_css_provider_get_named ()

GtkCssProvider *
gtk_css_provider_get_named (const gchar *name,
                            const gchar *variant);

Loads a theme from the usual theme paths

Parameters

name

A theme name



variant

variant to load, for example, "dark", or NULL for the default.

[allow-none]

Returns

a GtkCssProvider with the theme loaded. This memory is owned by GTK+, and you must not free it.

[transfer none]


gtk_css_provider_load_from_data ()

gboolean
gtk_css_provider_load_from_data (GtkCssProvider *css_provider,
                                 const gchar *data,
                                 gssize length,
                                 GError **error);

Loads data into css_provider , making it clear any previously loaded information.

Parameters

css_provider

a GtkCssProvider



data

CSS data loaded in memory.

[array length=length][element-type guint8]

length

the length of data in bytes, or -1 for NUL terminated strings. If length is not -1, the code will assume it is not NUL terminated and will potentially do a copy.



error

return location for a GError, or NULL.

[out][allow-none]

Returns

TRUE. The return value is deprecated and FALSE will only be returned for backwards compatibility reasons if an error is not NULL and a loading error occured. To track errors while loading CSS, connect to the GtkCssProvider::parsing-error signal.


gtk_css_provider_load_from_file ()

gboolean
gtk_css_provider_load_from_file (GtkCssProvider *css_provider,
                                 GFile *file,
                                 GError **error);

Loads the data contained in file into css_provider , making it clear any previously loaded information.

Parameters

css_provider

a GtkCssProvider



file

GFile pointing to a file to load



error

return location for a GError, or NULL.

[out][allow-none]

Returns

TRUE. The return value is deprecated and FALSE will only be returned for backwards compatibility reasons if an error is not NULL and a loading error occured. To track errors while loading CSS, connect to the GtkCssProvider::parsing-error signal.


gtk_css_provider_load_from_path ()

gboolean
gtk_css_provider_load_from_path (GtkCssProvider *css_provider,
                                 const gchar *path,
                                 GError **error);

Loads the data contained in path into css_provider , making it clear any previously loaded information.

Parameters

css_provider

a GtkCssProvider



path

the path of a filename to load, in the GLib filename encoding



error

return location for a GError, or NULL.

[out][allow-none]

Returns

TRUE. The return value is deprecated and FALSE will only be returned for backwards compatibility reasons if an error is not NULL and a loading error occured. To track errors while loading CSS, connect to the GtkCssProvider::parsing-error signal.


gtk_css_provider_new ()

GtkCssProvider *
gtk_css_provider_new (void);

Returns a newly created GtkCssProvider.

Returns

A new GtkCssProvider


gtk_css_provider_to_string ()

char *
gtk_css_provider_to_string (GtkCssProvider *provider);

Converts the provider into a string representation in CSS format.

Using gtk_css_provider_load_from_data() with the return value from this function on a new provider created with gtk_css_provider_new() will basically create a duplicate of this provider .

Parameters

provider

the provider to write to a string



Returns

a new string representing the provider .

Since 3.2


GTK_CSS_PROVIDER_ERROR

#define GTK_CSS_PROVIDER_ERROR (gtk_css_provider_error_quark ())

gtk_css_section_get_end_line ()

guint
gtk_css_section_get_end_line (const GtkCssSection *section);

Returns the line in the CSS document where this section end. The line number is 0-indexed, so the first line of the document will return 0. This value may change in future invocations of this function if section is not yet parsed completely. This will for example happen in the GtkCssProvider::parsing-error signal. The end position and line may be identical to the start position and line for sections which failed to parse anything successfully.

Parameters

section

the section



Returns

the line number

Since 3.2


gtk_css_section_get_end_position ()

guint
gtk_css_section_get_end_position (const GtkCssSection *section);

Returns the offset in bytes from the start of the current line returned via gtk_css_section_get_end_line(). This value may change in future invocations of this function if section is not yet parsed completely. This will for example happen in the GtkCssProvider::parsing-error signal. The end position and line may be identical to the start position and line for sections which failed to parse anything successfully.

Parameters

section

the section



Returns

the offset in bytes from the start of the line.

Since 3.2


gtk_css_section_get_file ()

GFile *
gtk_css_section_get_file (const GtkCssSection *section);

Gets the file that section was parsed from. If no such file exists, for example because the CSS was loaded via gtk_css_provider_load_from_data() , then NULL is returned.

Parameters

section

the section



Returns

the GFile that section was parsed from or NULL if section was parsed from other data.

[transfer none]

Since 3.2


gtk_css_section_get_parent ()

GtkCssSection *
gtk_css_section_get_parent (const GtkCssSection *section);

Gets the parent section for the given section . The parent section is the section that contains this section . A special case are sections of type GTK_CSS_SECTION_DOCUMENT. Their parent will either be NULL if they are the original CSS document that was loaded by gtk_css_provider_load_from_file() or a section of type GTK_CSS_SECTION_IMPORT if it was loaded with an import rule from a different file.

Parameters

section

the section



Returns

the parent section or NULL if none.

[nullable][transfer none]

Since 3.2


gtk_css_section_get_section_type ()

GtkCssSectionType
gtk_css_section_get_section_type (const GtkCssSection *section);

Gets the type of information that section describes.

Parameters

section

the section



Returns

the type of section

Since 3.2


gtk_css_section_get_start_line ()

guint
gtk_css_section_get_start_line (const GtkCssSection *section);

Returns the line in the CSS document where this section starts. The line number is 0-indexed, so the first line of the document will return 0.

Parameters

section

the section



Returns

the line number

Since 3.2


gtk_css_section_get_start_position ()

guint
gtk_css_section_get_start_position (const GtkCssSection *section);

Returns the offset in bytes from the start of the current line returned via gtk_css_section_get_start_line().

Parameters

section

the section



Returns

the offset in bytes from the start of the line.

Since 3.2


gtk_css_section_ref ()

GtkCssSection *
gtk_css_section_ref (GtkCssSection *section);

Increments the reference count on section .

Parameters

section

a GtkCssSection



Returns

section itself.

Since 3.2


gtk_css_section_unref ()

void
gtk_css_section_unref (GtkCssSection *section);

Decrements the reference count on section , freeing the structure if the reference count reaches 0.

Parameters

section

a GtkCssSection



Since 3.2

Types and Values

struct GtkCssProvider

struct GtkCssProvider;

enum GtkCssProviderError

Deprecated.

Members

GTK_CSS_PROVIDER_ERROR_FAILED

Failed.



GTK_CSS_PROVIDER_ERROR_SYNTAX

Syntax error.



GTK_CSS_PROVIDER_ERROR_IMPORT

Import error.



GTK_CSS_PROVIDER_ERROR_NAME

Name error.



GTK_CSS_PROVIDER_ERROR_DEPRECATED

Deprecation error.



GTK_CSS_PROVIDER_ERROR_UNKNOWN_VALUE

Unknown value.



GtkCssSection

typedef struct _GtkCssSection GtkCssSection;

Defines a part of a CSS document. Because sections are nested into one another, you can use gtk_css_section_get_parent() to get the containing region.

Since 3.2


enum GtkCssSectionType

The different types of sections indicate parts of a CSS document as parsed by GTK’s CSS parser. They are oriented towards the CSS Grammar, but may contain extensions.

More types might be added in the future as the parser incorporates more features.

Members

GTK_CSS_SECTION_DOCUMENT

The section describes a complete document. This section time is the only one where gtk_css_section_get_parent() might return NULL.



GTK_CSS_SECTION_IMPORT

The section defines an import rule.



GTK_CSS_SECTION_COLOR_DEFINITION

The section defines a color. This is a GTK extension to CSS.



GTK_CSS_SECTION_BINDING_SET

The section defines a binding set. This is a GTK extension to CSS.



GTK_CSS_SECTION_RULESET

The section defines a CSS ruleset.



GTK_CSS_SECTION_SELECTOR

The section defines a CSS selector.



GTK_CSS_SECTION_DECLARATION

The section defines the declaration of a CSS variable.



GTK_CSS_SECTION_VALUE

The section defines the value of a CSS declaration.



GTK_CSS_SECTION_KEYFRAMES

The section defines keyframes. See CSS Animations for details. Since 3.6



Since 3.2

Signal Details

The “parsing-error” signal

void
user_function (GtkCssProvider *provider,
               GtkCssSection  *section,
               GError         *error,
               gpointer        user_data)

Signals that a parsing error occured. the path , line and position describe the actual location of the error as accurately as possible.

Parsing errors are never fatal, so the parsing will resume after the error. Errors may however cause parts of the given data or even all of it to not be parsed at all. So it is a useful idea to check that the parsing succeeds by connecting to this signal.

Note that this signal may be emitted at any time as the css provider may opt to defer parsing parts or all of the input to a later time than when a loading function was called.

Parameters

provider

the provider that had a parsing error



section

section the error happened in



error

The parsing error



user_data

user data set when the signal handler was connected.



Flags: Run Last

© manpagez.com 2000-2024
Individual documents may contain additional copyright information.
